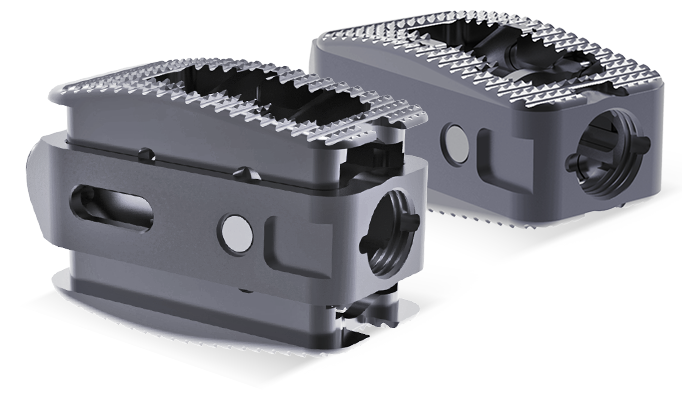

EQUILOX™ EXPANDABLE LUMBAR CAGE
EquiLOX Expandable Lumbar Cage Technology incorporates an innovative design, maximizing expansion without sacrificing through-cage fusion area, with a highly efficient workflow.
SIZE. INSERT. EXPAND. BACKFILL.
RELIABLE EXPANDABLE LUMBAR CAGE
The durable titanium design has a minimal starting height, tapered leading edge, and full expansion. EquiLOX is designed to reduce neural retraction and facilitate placement in compressed spaces.
EFFECTIVE
EquiLOX features a distal expansion mechanism, simplifying post-packing and creating an unobstructed through-cage area to support fusion. Additionally, the implant expands across its entire surface, making implantation easier and enhancing the potential for indirect decompression.
MIS FULLY EXPANDABLE LUMBAR CAGE WITH LARGE THROUGH-CAGE FUSION AREA AND EFFICIENT WORKFLOW
CONTROL
An expandable implant that provides up to 5mm of variable expansion, standard lengths of 24mm and 28mm, and lordotic options of 3°, 6°, and *9°. Custom options of *12° and *15° are also available upon request.
EquiLOX Expandable Cage Profile:
Width Available: 10mm
Length Available: 24mm/28mm
Starting Height Available: **7-12mm
Ending Height Available: **11-17mm
Lordotic Angles Available: 3º, 6º, *9º, *12º, *15º
3mm Bulleted Nose
*Custom options available upon request
**7mm cage expands 4mm to max height of 11mm
INTUITIVE
EquiLOX expanding interbody fusion device’s intuitive design streamlines the surgical workflow with four simple steps.
